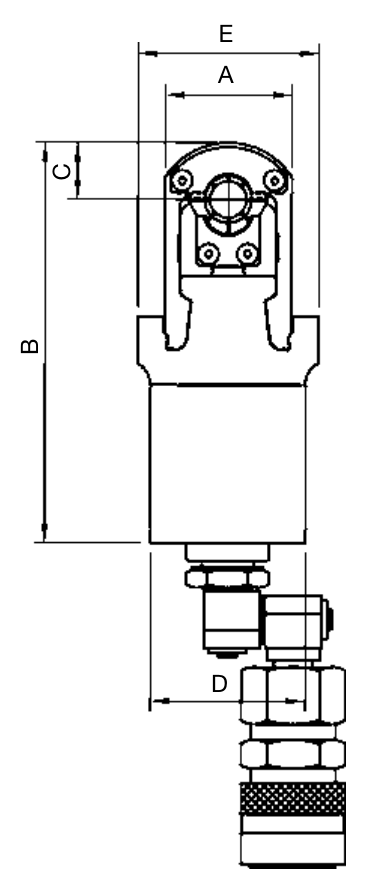

Model 10
- NPS pipe
- —
- OD tube
- ¼ in
- Metric
- 6–8 mm
PYPLOK INSTALLATION EQUIPMENTPrecision tooling.
Precision tooling.
Controlled installation.
Hydraulically powered swaging tools cold-compress Pyplok fittings onto pipe and tube to create permanent mechanical connections. Six models cover different fitting sizes, with tooling, dies and inspection gauges selected for the piping system.
View CataloguePYPLOK® TOOLING
Six models. One swaging system.
Portable hydraulic tooling for pipe and tube connections across marine, offshore and industrial applications. Explore each model below for the manufacturer’s dimensions and specifications.

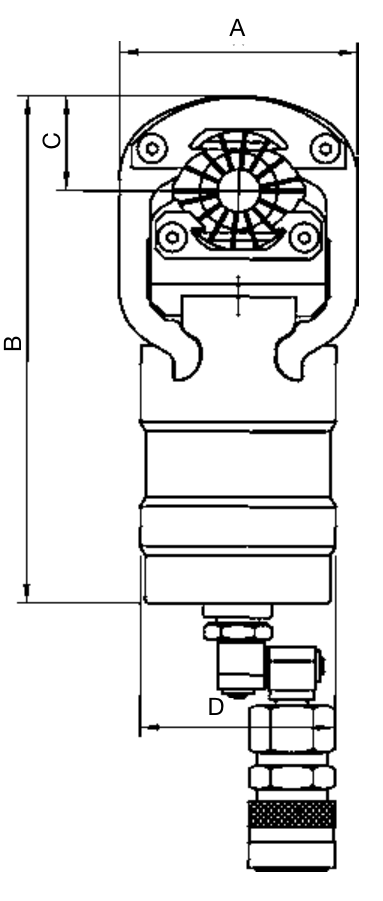

Model 20
- NPS pipe
- ¼–⅜ in
- OD tube
- ⅜–⅝ in
- Metric
- 6–16 mm

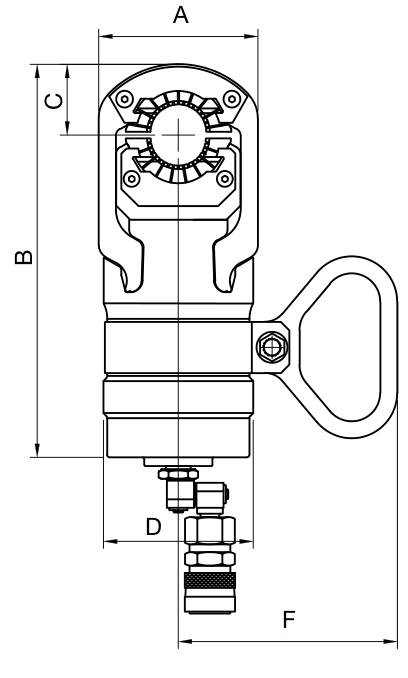

Model 40
- NPS pipe
- ¼–¾ in
- OD tube
- ⅜–1 in
- Metric
- 8–30 mm

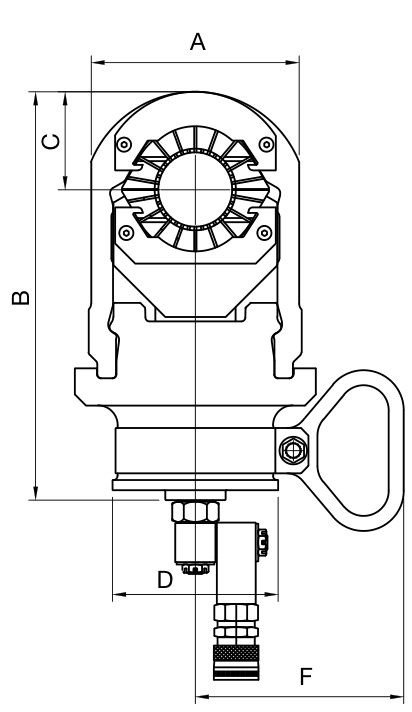

Model 55
- NPS pipe
- ½–1½ in
- OD tube
- 1–2 in
- Metric
- 22–57 mm

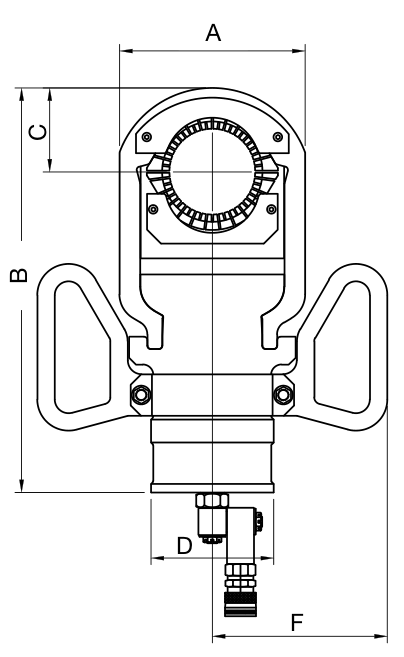

Model 70
- NPS pipe
- 1–3 in
- OD tube
- 1½–2 in
- Metric
- 35–76 mm

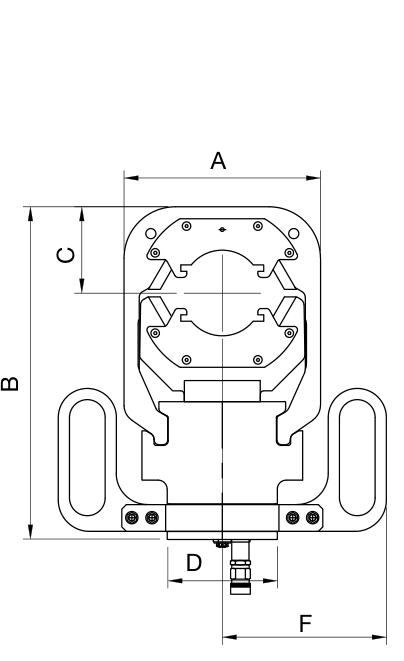

Model 86
- NPS pipe
- 3–4 in
- OD tube
- —
- Metric
- 108 mm
Ranges shown follow the manufacturer’s tooling overview. Compatibility depends on the fitting series, size and head assembly; confirm the exact tool, die set and gauge using the tooling coverage and selection matrices. A dash indicates no range listed in the overview.
THE INSTALLATION SYSTEM
Tooling matched to the connection.
The Pyplok system uses external radial swaging to compress the fitting around the pipe or tube. The complete installation setup combines the selected swage tool, a 10,000 psi / 690 bar hydraulic power supply, and inspection and marking gauges.
01 / SWAGE TOOL
Tool, head and dies
The power unit, head assembly, swage dies and die block form the tooling assembly.
02 / HYDRAULIC POWER
Matched power supply
Use a hydraulic pump and associated equipment meeting the manufacturer’s requirements.
03 / INSPECTION
Marking and gauges
Use the specified marking and inspection gauges throughout the installation procedure.
