FPSO Saxi Batuque
Pyplok fittings were used to repair leaking 1-inch and 1½-inch stainless-steel hydraulic lines rated at 3,000 psi on an operating FPSO offshore Northern Angola, where welding and sparks were not suitable.
ExxonMobil / SBM
CASE STUDIESProven applications.
Proven applications.
Operating environments.
Explore Pyplok manufacturer case studies from vessels, offshore platforms and industrial piping systems, with practical examples of cold-installed connections in service.
Explore case studies Illustrative FPSO image; project references appear below.MARINE & OFFSHORE
Technology in application
Selected Pyplok manufacturer projects, from hydraulic repairs to planned piping maintenance. These references illustrate the technology; they are not SAE-delivered projects.
FSRU Tatiana
A 44.5 mm CuNi hydraulic-oil line operating at 80 bar was repaired using Pyplok fittings. The case study reports the repair was completed with virtually no downtime.
BW Group / BW LNG
Cidade de Itajaí
Repairs to 1½-inch and 2-inch carbon-steel and stainless-steel piping across chemical injection, bilge, open drain, thermal oil, cooling water and glycol systems.
Altera & Ocyan

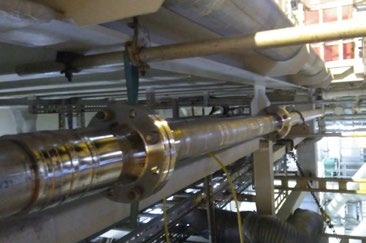

Eldfisk S Platform
A 4-inch Schedule 10 super duplex drain-line connection was completed in 12 minutes without heat or sparks and without disturbing surrounding operating areas.
ConocoPhillips
Offshore Sabah
More than 350 fittings were used to replace corroding welded carbon-steel instrument-gas and utility-air piping with 316/316L stainless steel.
Hibiscus Petroleum
Marine piping applications
Supplied case studies also cover Shell seawater piping, Maersk wellbore-fluid vent piping and Ibaizabal Group heating-coil piping.
Pyplok references
Project photographs and references: Pyplok manufacturer case studies. Select a project to view its source document.
